Venetian blind

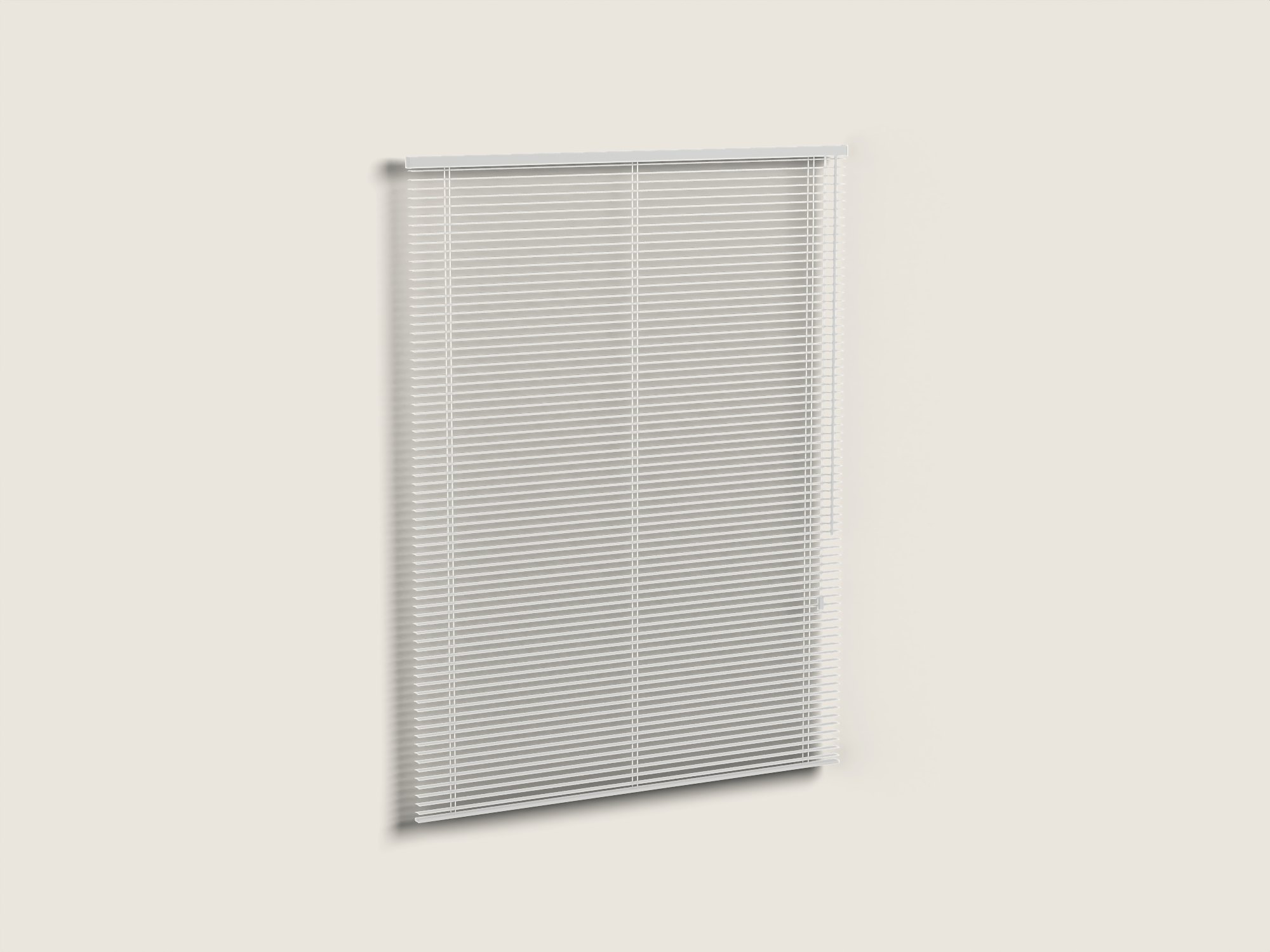

Venetian blind 1200 × 1600 with white aluminium slats of 25 or 50 mm, ladder cords, tilt wand and pull cord.
Variant
Download
Thanks – your download is starting.If this model saves you time, you can support the project – Millimetric3D is just getting started.Support the project
No account needed. The SKP opens directly in SketchUp. The ZIP holds all formats (light SKP, FBX/OBJ with textures) and a readme with dimensions and tags.Saves you time? Support the projectLicence: royalty-free – client work, plans and renderings. No resale of the model files. Licence. Generic model, not a replica of a specific product.
Dimensions (mm)
| Width | 1200 |
| Height | 1600 |
| Slat 25 · pitch / headrail | 21 / 25 × 25 |
| Slat 50 · pitch / headrail | 42 / 50 × 55 |
| Stack height 25 / 50 | 122 / 151 |
| Slats 25 / 50 | 74 / 36 |
What’s in the file
- Tags: track, hardware (slats, ladders, bottom rail, wand, cords), 2D_symbol, ceiling (display only)
- States: closed / open / raised
- Scenes: Thumbnail, Closed, Open, Raised, Plan, Section, Section detail
- Light version for large projects (580–808 triangles)
- Formats: SKP (detail) · light SKP · FBX · OBJ (+MTL, textures) – FBX/OBJ: mesh only, no tags or components
Planning notes
- Raised stack 122 (25 mm slats) or 151 (50 mm slats) below the headrail.
- Closed slat angle 75°; tilt wand 0.6 × height, pull cord 0.7 × height (modelled values).
- Origin: centre of headrail top (ceiling or top of reveal).
