Roman blind

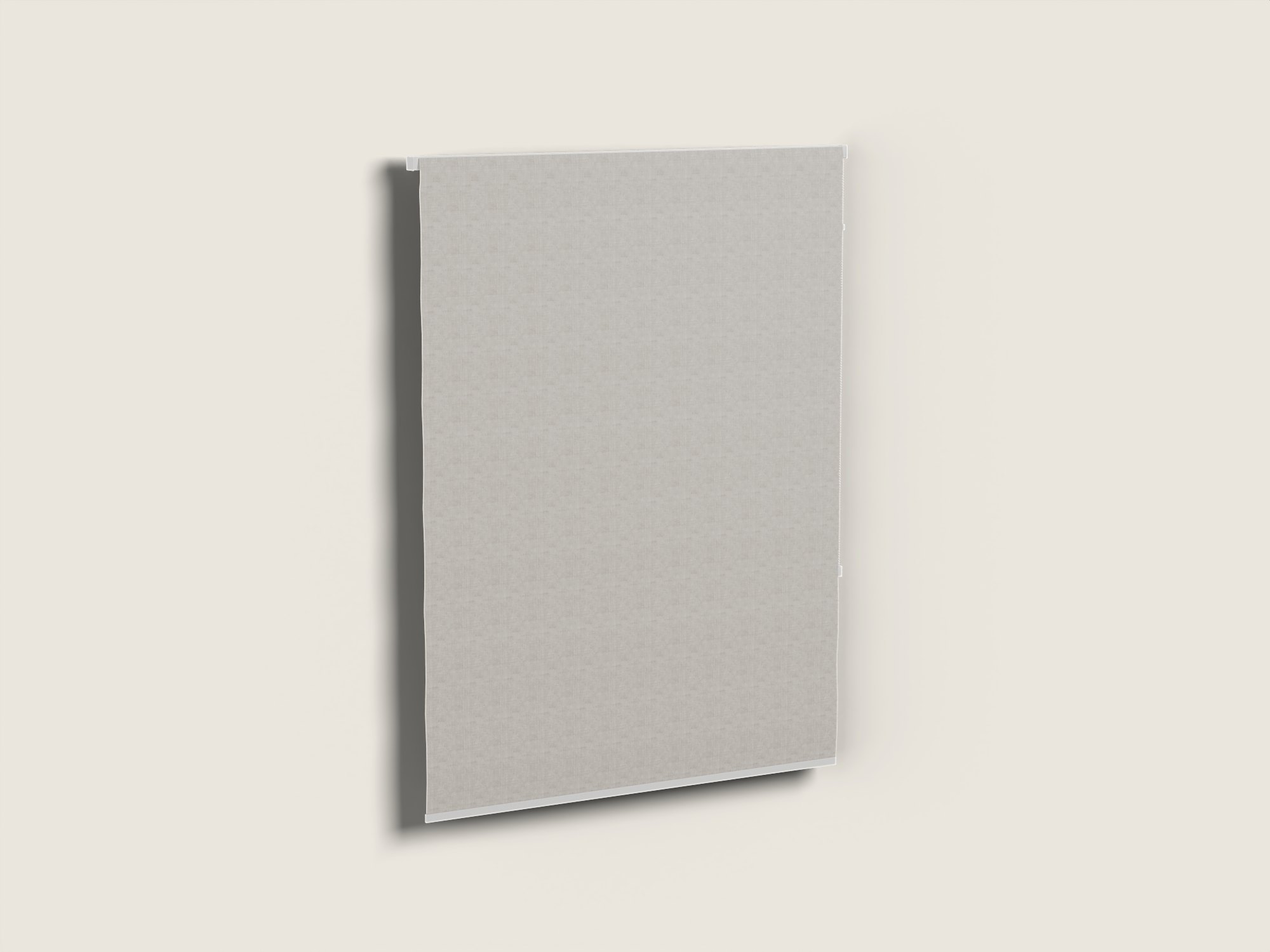

Roman blind 1200 × 1600 with dimout fabric, 7 folds on a 35 × 30 headrail, chain operated on the right.
Download
Thanks – your download is starting.If this model saves you time, you can support the project – Millimetric3D is just getting started.Support the project
No account needed. The SKP opens directly in SketchUp. The ZIP holds all formats (light SKP, FBX/OBJ with textures) and a readme with dimensions and tags.Saves you time? Support the projectLicence: royalty-free – client work, plans and renderings. No resale of the model files. Licence. Generic model, not a replica of a specific product.
Dimensions (mm)
| Width | 1200 |
| Height | 1600 |
| Headrail | 35 × 30 |
| Fold spacing | 250 |
| Folds | 7 |
| Stack height (raised) | 230 |
What’s in the file
- Tags: track, fabric, hardware, 2D_symbol, ceiling (display only)
- States: closed / open (raised)
- Scenes: Thumbnail, Closed, Open, Plan, Section, Section detail
- Fabric: dimout (generic material); battens Ø6 on the back, bottom bar 6 × 20
- Light version for large projects (242 triangles)
- Formats: SKP (detail) · light SKP · FBX · OBJ (+MTL, textures) – FBX/OBJ: mesh only, no tags or components
Planning notes
- Raised stack height 230 below the headrail.
- Stack = folds × 30 + 20 (modelled value).
- Origin: centre of headrail top (ceiling or top of reveal).
