ZNM-027 · Roller blinds
Double roller blind

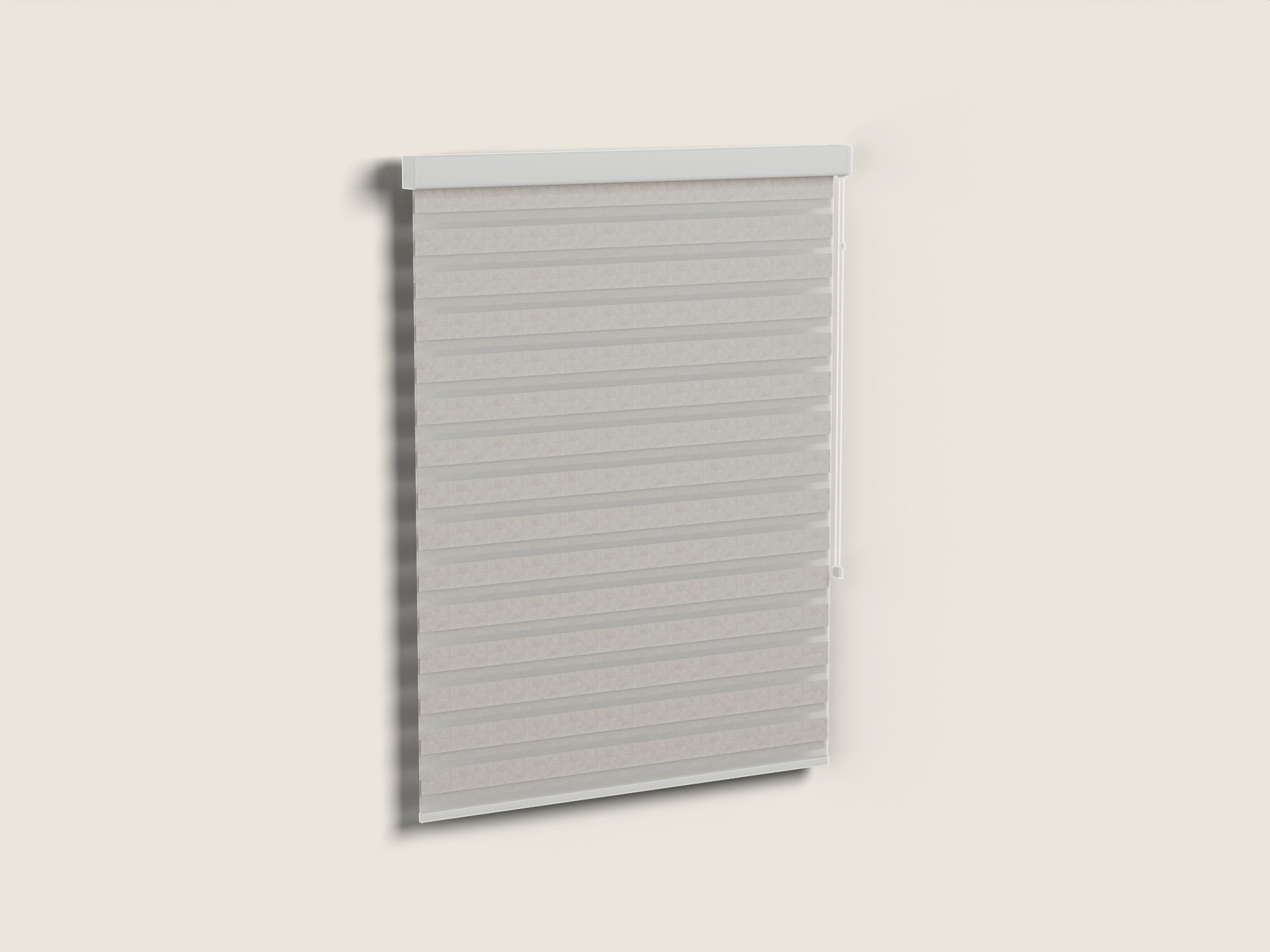

Double roller blind (day/night) 1200 × 1600 in a 70 × 75 cassette: two fabric layers with opaque and sheer stripes, chain right.
Download
Thanks – your download is starting.If this model saves you time, you can support the project – Millimetric3D is just getting started.Support the project
No account needed. The SKP opens directly in SketchUp. The ZIP holds all formats (light SKP, FBX/OBJ with textures) and a readme with dimensions and tags.Saves you time? Support the projectLicence: royalty-free – client work, plans and renderings. No resale of the model files. Licence. Generic model, not a replica of a specific product.
Dimensions (mm)
| Width | 1200 |
| Height | 1600 |
| Cassette D × H | 70 × 75 |
| Stripes opaque / sheer | 60 / 40 |
| Stripe pitch | 100 |
| Fabric width | 1156 |
What’s in the file
- Tags: track, fabric, hardware, 2D_symbol, ceiling (display only)
- States: closed (opaque covers sheer) / open (see-through) – both lowered
- Scenes: Thumbnail, Closed, Open, Plan, Section, Section detail
- Fabric: dimout + sheer stripes (generic materials)
- Light version for large projects (422 triangles)
- Formats: SKP (detail) · light SKP · FBX · OBJ (+MTL, textures) – FBX/OBJ: mesh only, no tags or components
Planning notes
- Closed: rear layer offset by 60 so the opaque stripes cover the sheer ones.
- Front layer fixed at the cassette, rear layer from the roll (modelled values).
- Origin: centre of cassette top (ceiling or top of reveal).
