ZNM-026 · Roller blinds
Blackout roller with side channels

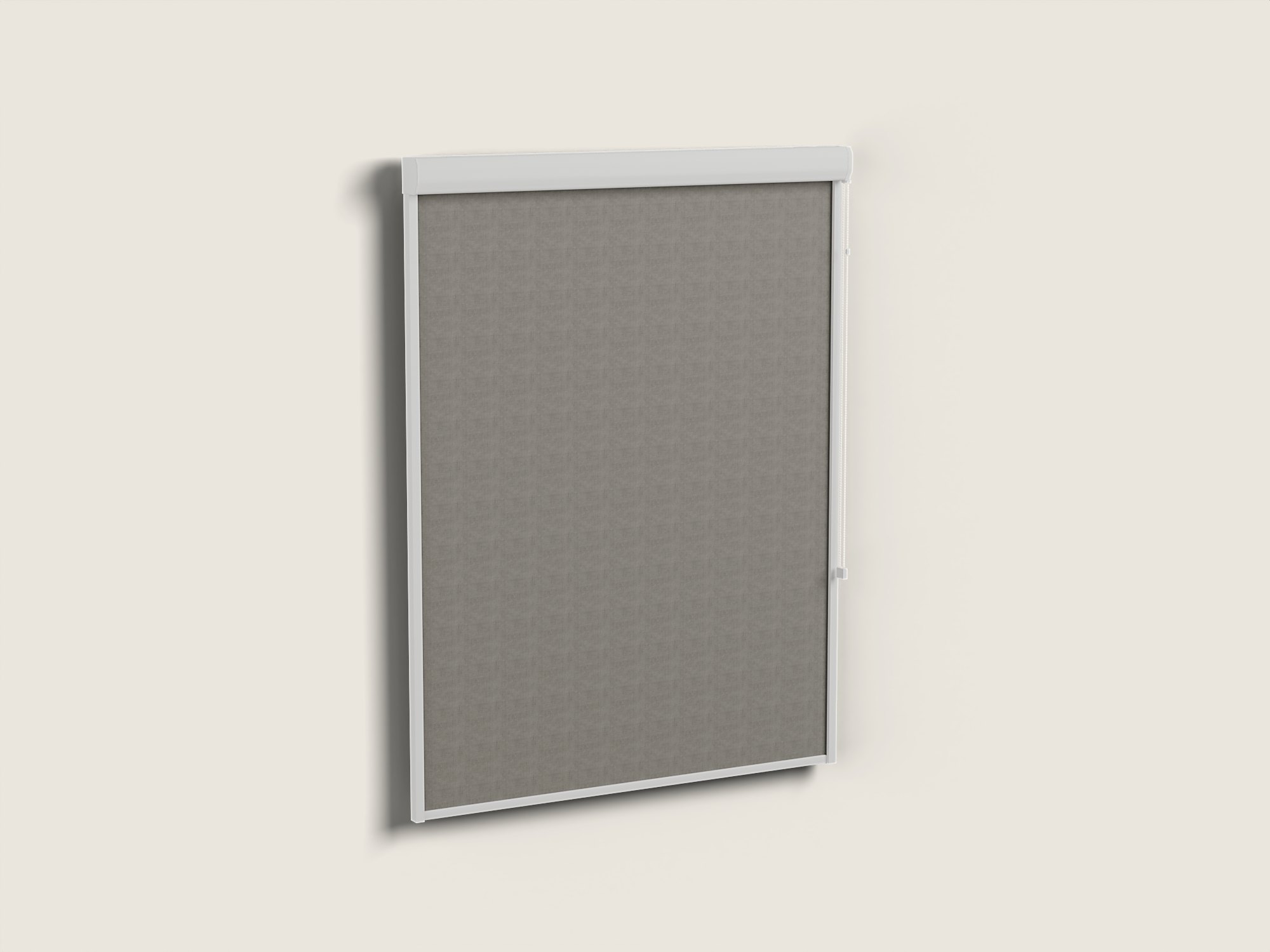

Blackout roller blind 1200 × 1600 in an 85 × 85 cassette with side channels and brush seals, chain operated on the right.
Download
Thanks – your download is starting.If this model saves you time, you can support the project – Millimetric3D is just getting started.Support the project
No account needed. The SKP opens directly in SketchUp. The ZIP holds all formats (light SKP, FBX/OBJ with textures) and a readme with dimensions and tags.Saves you time? Support the projectLicence: royalty-free – client work, plans and renderings. No resale of the model files. Licence. Generic model, not a replica of a specific product.
Dimensions (mm)
| Width | 1200 |
| Height | 1600 |
| Cassette D × H | 85 × 85 |
| Side channels W × D | 22 × 30 |
| Fabric width | 1176 |
What’s in the file
- Tags: track, fabric, hardware, 2D_symbol, ceiling (display only)
- States: closed / open
- Scenes: Thumbnail, Closed, Open, Plan, Section, Section detail
- Fabric: blackout (generic material)
- Light version for large projects (200 triangles)
- Formats: SKP (detail) · light SKP · FBX · OBJ (+MTL, textures) – FBX/OBJ: mesh only, no tags or components
Planning notes
- Fabric runs 10 deep in the side channels, brush on both sides.
- Chain 25 in front of the cassette centre (in front of the side channel).
- Plan 22 per side for the channels inside the reveal.
- Origin: centre of cassette top (ceiling or top of reveal).
