ZNM-020 · Curtains
Eyelet curtain

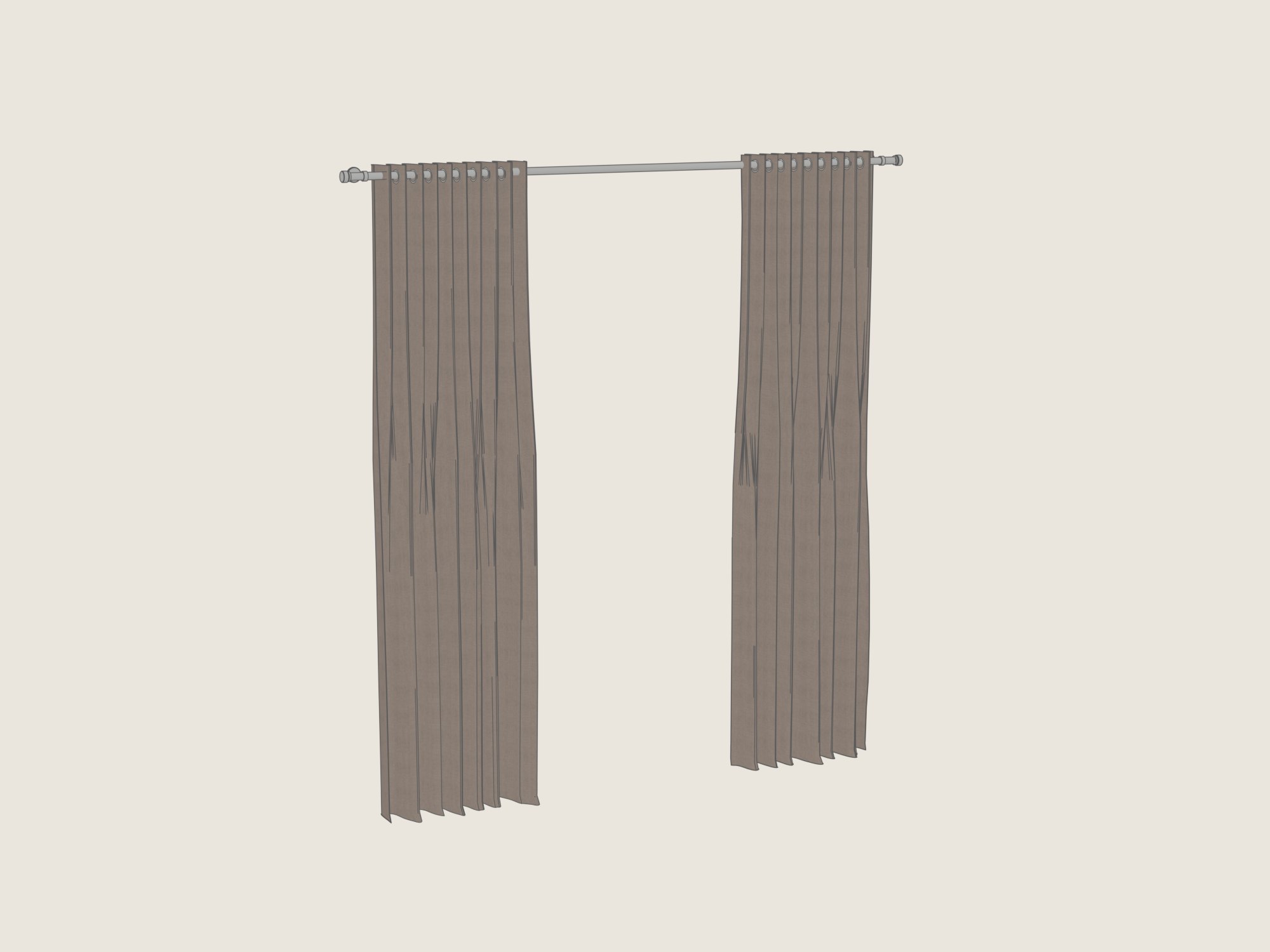

Eyelet curtain on a Ø28 rod with two wall brackets and finials, dimout fabric resting on the floor, with irregular drape.
Download
Thanks – your download is starting.If this model saves you time, you can support the project – Millimetric3D is just getting started.Support the project
No account needed. The SKP opens directly in SketchUp. The ZIP holds all formats (light SKP, FBX/OBJ with textures) and a readme with dimensions and tags.Saves you time? Support the projectLicence: royalty-free – client work, plans and renderings. No resale of the model files. Licence. Generic model, not a replica of a specific product.
Dimensions (mm)
| Rod length | 2400 |
| Rod diameter | Ø28 |
| Rod axis height | 2450 |
| Rod axis to wall | 100 |
| Drop | 2474 |
| Stack-back per side | 240 |
| Depth closed / stacked | 166 / 193 |
| Eyelets / spacing | 26 / 91.5 |
What’s in the file
- Tags: track, fabric, hardware, 2D_symbol (plan symbol at floor level), ceiling (display only)
- State tags: closed / open / relaxed
- Scenes: Thumbnail, Closed, Open, Open relaxed, Plan, Section, Section detail
- Fabric: ZNT-108 Panama dimout taupe; rod brushed steel
- Light version for large projects (6232 triangles)
- Formats: SKP (detail) · light SKP · FBX · OBJ (+MTL, textures) – FBX/OBJ: mesh only, no tags or components
Planning notes
- Fabric top 39 above the rod axis – keep this clearance below the ceiling.
- Plan 240 stack-back on each side (stack ratio 0.2).
- Eyelets Ø40 inside / 52 outside, 2 brackets 60 from the rod ends (modelled values).
- Origin: centre of rod, wall face, rod axis.
- Matching fabric: ZNT-108.
