ZNM-017 · Curtains
Wave curtain

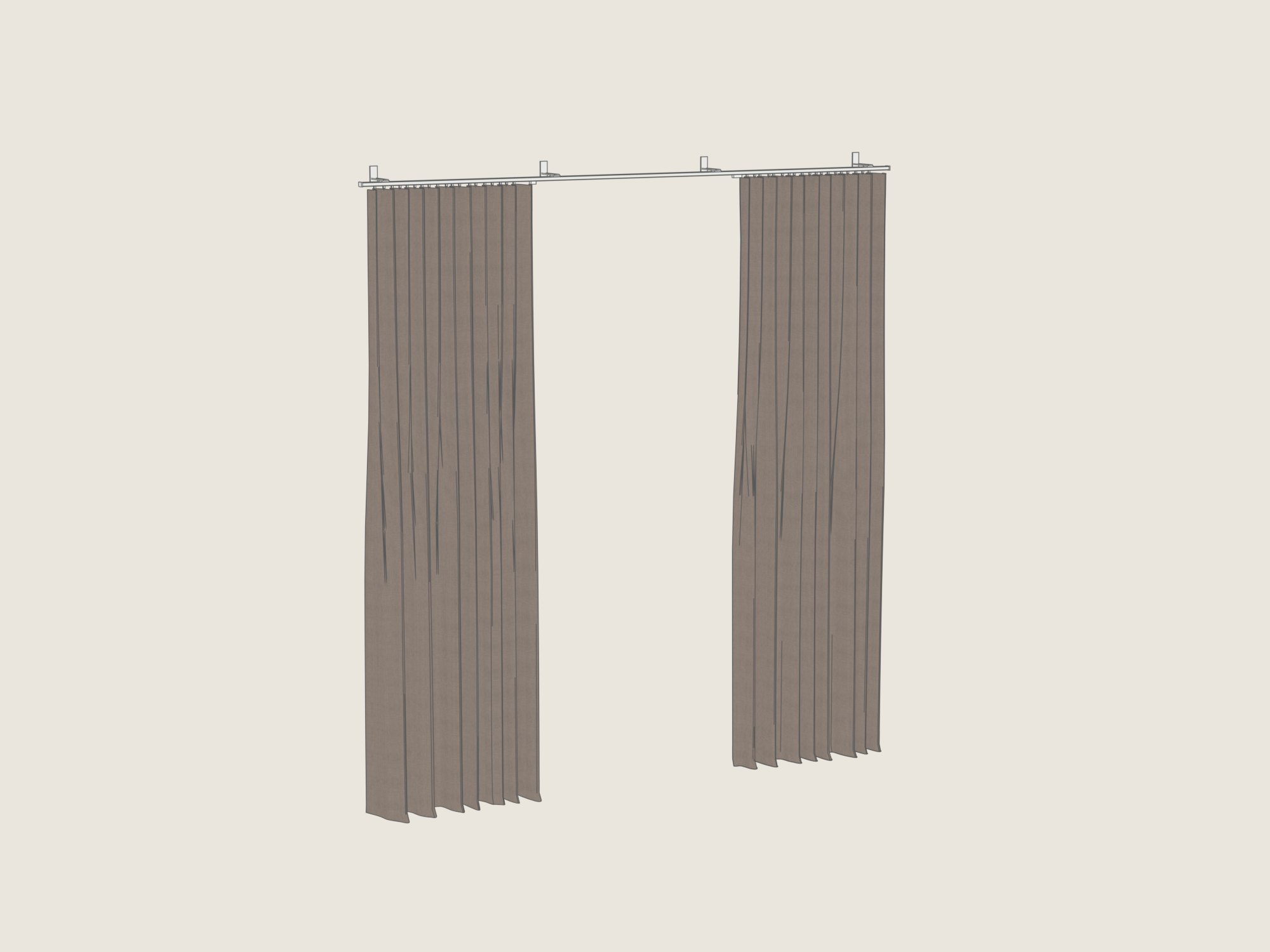

Single wave curtain on a wall-mounted track, wave 80 heading, dimout fabric resting on the floor, with irregular drape.
Download
Thanks – your download is starting.If this model saves you time, you can support the project – Millimetric3D is just getting started.Support the project
No account needed. The SKP opens directly in SketchUp. The ZIP holds all formats (light SKP, FBX/OBJ with textures) and a readme with dimensions and tags.Saves you time? Support the projectLicence: royalty-free – client work, plans and renderings. No resale of the model files. Licence. Generic model, not a replica of a specific product.
Dimensions (mm)
| Track length | 2400 |
| Bracket height | 2500 |
| Drop | 2473 |
| Track axis to wall | 100 |
| Stack-back per side | 216 |
| Depth closed / stacked | 167 / 216 |
| Hang points / spacing | 32 / 77.9 |
What’s in the file
- Tags: track, fabric, hardware, 2D_symbol (plan symbol at floor level), ceiling (display only)
- State tags: closed / open / relaxed
- Scenes: Thumbnail, Closed, Open, Open relaxed, Plan, Section, Section detail
- Fabric: ZNT-108 Panama dimout taupe
- Light version for large projects (864 triangles)
- Formats: SKP (detail) · light SKP · FBX · OBJ (+MTL, textures) – FBX/OBJ: mesh only, no tags or components
Planning notes
- Plan 216 stack-back on each side of the window (stack ratio 0.18).
- Track axis 100 in front of the wall, bracket spacing ≤ 800 (modelled values).
- Hem rests on the floor (+40 hem allowance).
- Origin: centre of track, wall face, underside of wall brackets.
- Matching fabric: ZNT-108.
