ZNM-013 · Doors

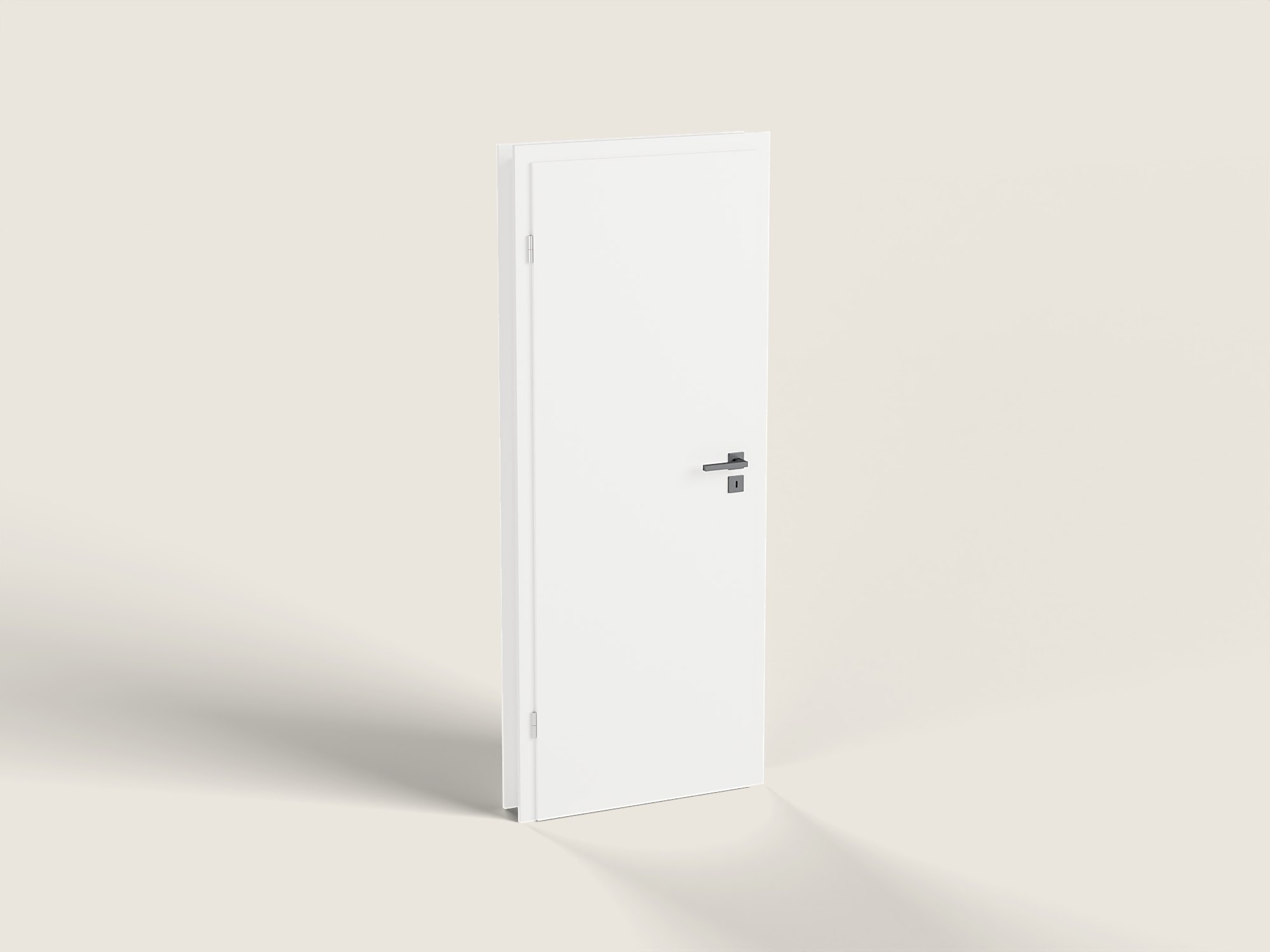

Interior door, rebated
Rebated interior door with two-part adjustable wraparound frame, two visible hinges and lever handle, sized to DIN 18101.
Variant
Download
Thanks – your download is starting.If this model saves you time, you can support the project – Millimetric3D is just getting started.Support the project
No account needed. The SKP opens directly in SketchUp. The ZIP holds all formats (light SKP, FBX/OBJ with textures) and a readme with dimensions and tags.Saves you time? Support the projectLicence: royalty-free – client work, plans and renderings. No resale of the model files. Licence. Generic model, not a replica of a specific product.
Dimensions (mm)
| Nominal size | 875 × 2000 / 750 × 2000 |
| Door leaf outer (875) | 860 × 1985 × 40 |
| Leaf in rebate (875) | 834 × 1972 |
| Rebate on leaf | 13 × 25.5 |
| Clear passage (875) | 817 × 1968 |
| Casing outer (875) | 961 × 2040 |
| Wall thickness | 125 (adjustable −10 / +20) |
| Hinges | 2 · top line 241 below frame rebate · spacing 1435 |
What’s in the file
- Tags: frame, leaf, hardware
- Components: door_leaf (rotates about the hinge axis), hinge parts, frame_main, frame_counter, door_lever_handle_set_bb_t40 (ZNM-010 light, graphite)
- 2 visible hinges (barrel Ø15); scene Thumbnail; SKP saved as SketchUp 2021
- Light version for projects with many doors (1692 triangles)
- Dynamic variant: width 625–1125, height 1875–2250 (DIN 18101), wall 90–350, opening angle 0–90°; hinges follow the height
- Static sizes: SKP (detail) · light SKP · FBX · OBJ (+MTL) – FBX/OBJ: mesh only, no tags or components. Dynamic variant: SKP (dynamic component) · FBX · OBJ (+MTL) of the default size 875 × 2000
Planning notes
- Wall 115–145: move frame_counter along the green axis inside the frame component.
- Rear casing flush with the clear passage (12 smaller than the front casing).
- Handing DIN left – mirror for right.
- Origin: centre of opening, finished floor, wall face on the hinge side. The dynamic variant does not glue to walls.
- 750 × 2000: leaf outer 735 × 1985, in rebate 709 × 1972, clear passage 692 × 1968, casing outer 836 × 2040.
