ZNM-009 Interior door, flush
ZNM-009 · Doors

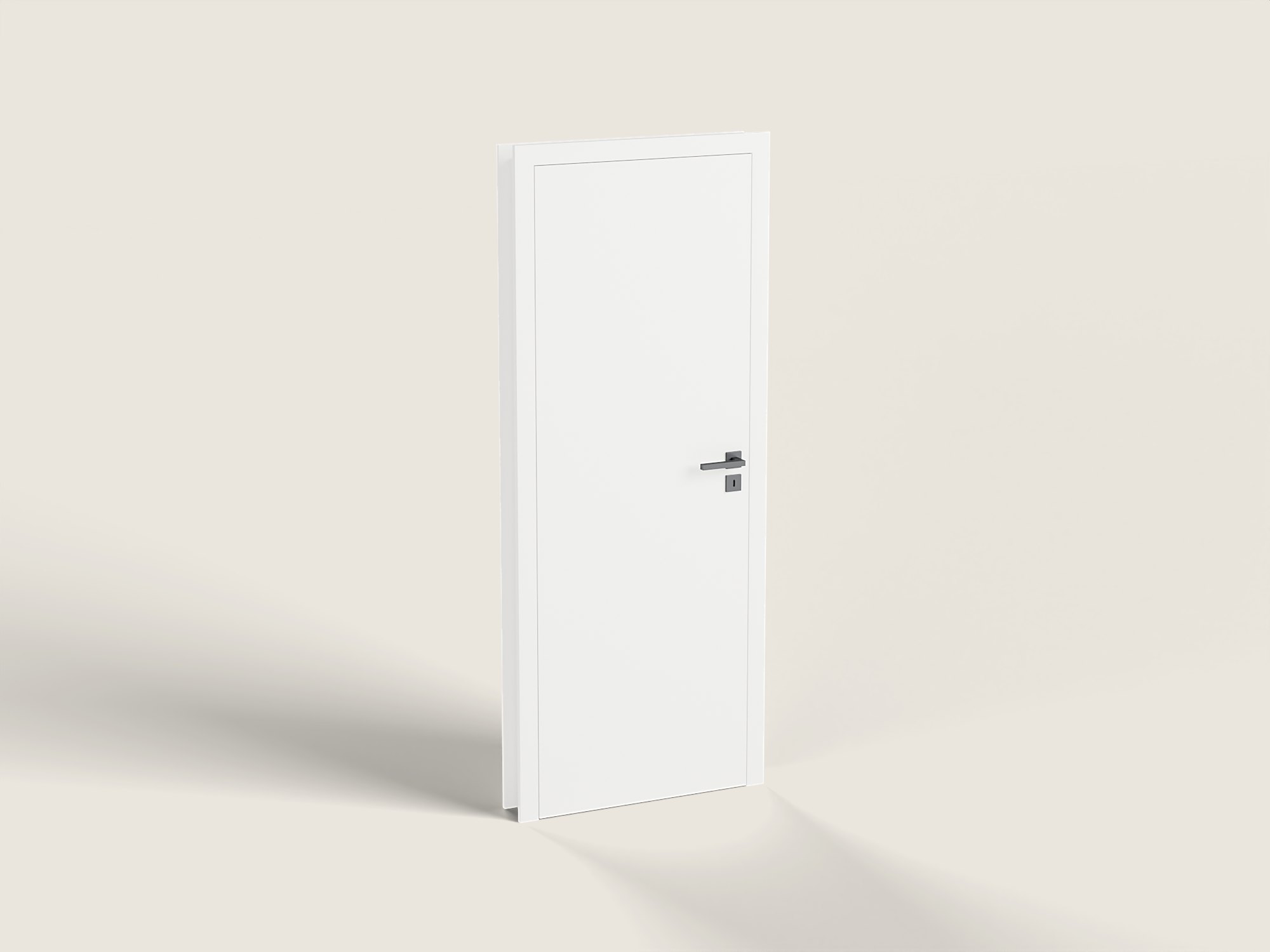

Interior door, flush

Flush interior door with two-part adjustable wraparound frame, concealed hinges and lever handle, sized to DIN 18101.

Variant
Download
Thanks – your download is starting.If this model saves you time, you can support the project – Millimetric3D is just getting started.Support the project
No account needed. The SKP opens directly in SketchUp. The ZIP holds all formats (light SKP, FBX/OBJ with textures) and a readme with dimensions and tags.Saves you time? Support the project
Licence: royalty-free – client work, plans and renderings. No resale of the model files. Licence. Generic model, not a replica of a specific product.

Dimensions (mm)

Nominal size875 × 2000 / 750 × 2000
Door leaf (875)834 × 1972 × 40
Clear passage (875)817 × 1968
Frame rebate (875)841 × 1980
Casing outer (875)961 × 2040
Wall opening (875)885 × 2005
Wall thickness125 (adjustable −10 / +20)
Casing60 × 16

What’s in the file

  • Tags: frame, leaf, hardware
  • Components: door_leaf (rotates about the hinge edge), frame_main, frame_counter, door_lever_handle_set_bb_t40 (ZNM-010 light, graphite)
  • 3 concealed hinges; scene Thumbnail; SKP saved as SketchUp 2021
  • Light version for projects with many doors (1504 triangles)
  • Dynamic variant: nominal width 625 / 750 / 875 / 1000 / 1125, height 1875 / 2000 / 2125 / 2250, wall 110–350 in 5 mm steps, opening angle 0–90°
  • Static sizes: SKP (detail) · light SKP · FBX · OBJ (+MTL) – FBX/OBJ: mesh only, no tags or components. Dynamic variant: SKP (dynamic component) · FBX · OBJ (+MTL) of the default size 875 × 2000

Planning notes

  • Wall 115–145: move frame_counter along the green axis inside the frame component.
  • Gaps: side 3.5, top 3, floor 5. Handle height 1050, backset 55, keyhole 72 below the lever.
  • Handing DIN left – mirror for right.
  • Origin: centre of opening, finished floor, wall face on the hinge side; static door glues to vertical faces. The dynamic variant does not glue to walls.
  • 750 × 2000: leaf 709 × 1972, frame rebate 716 × 1980, clear passage 692 × 1968, casing outer 836 × 2040.
